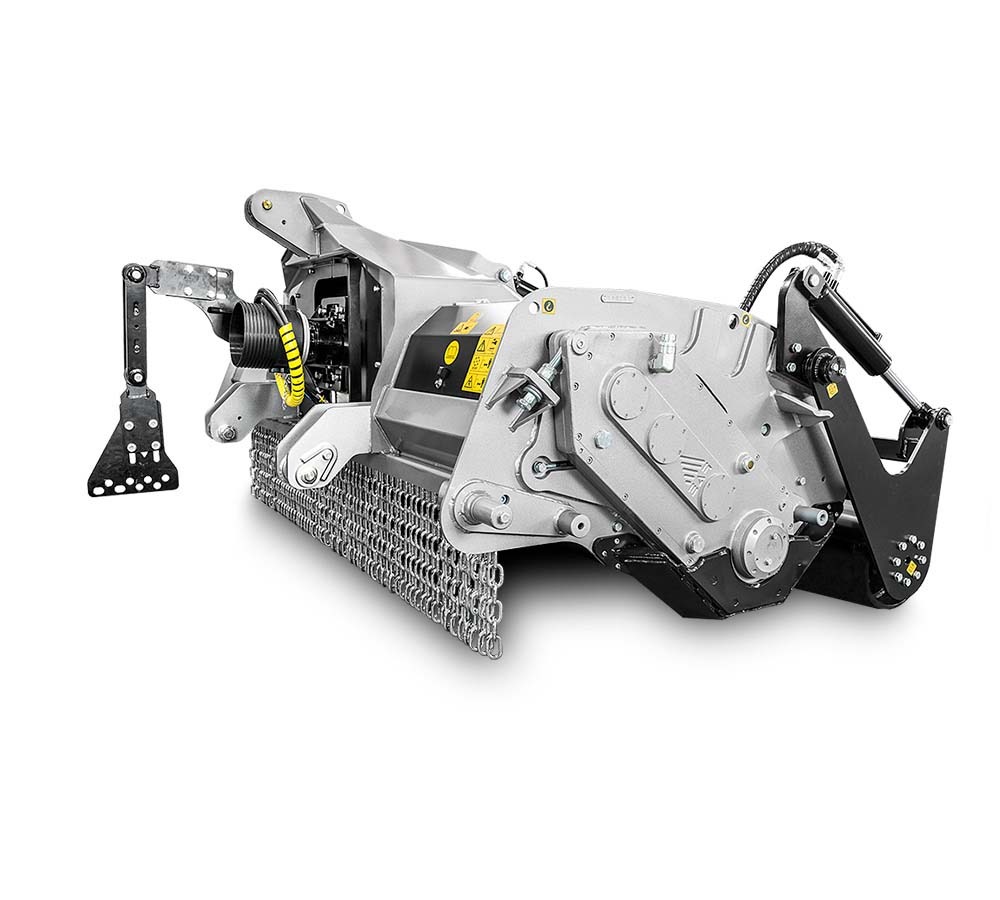

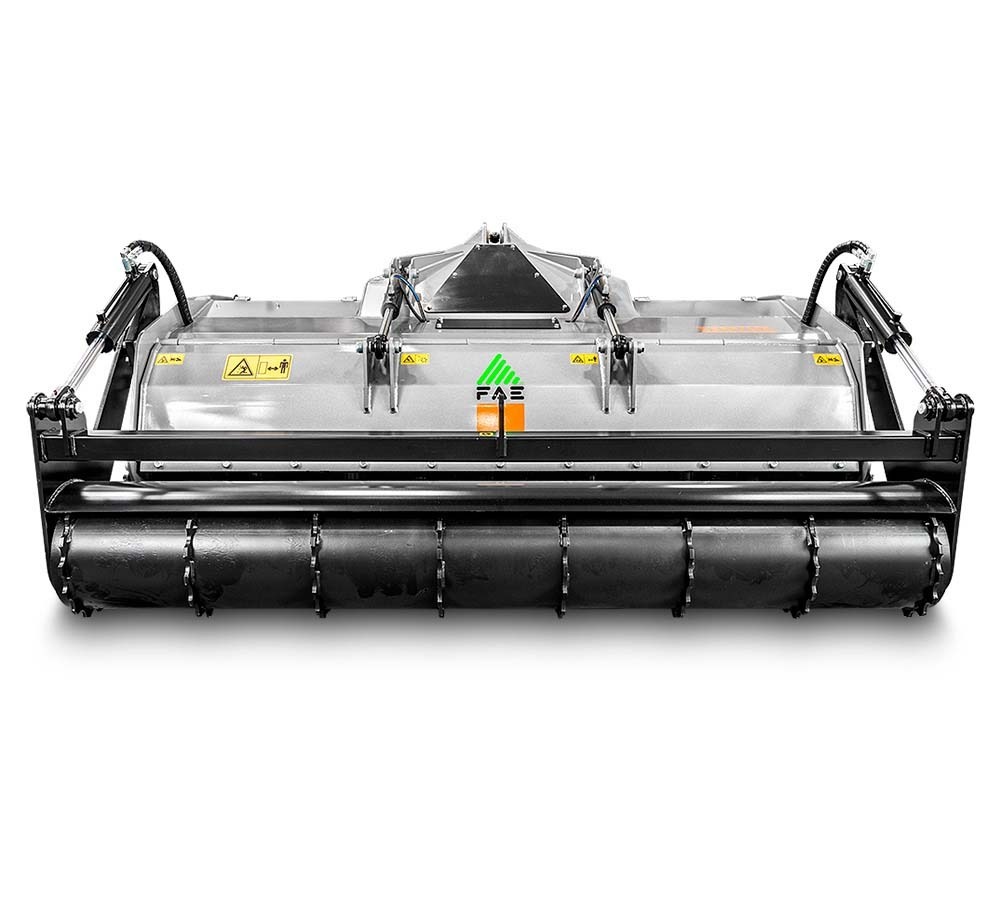

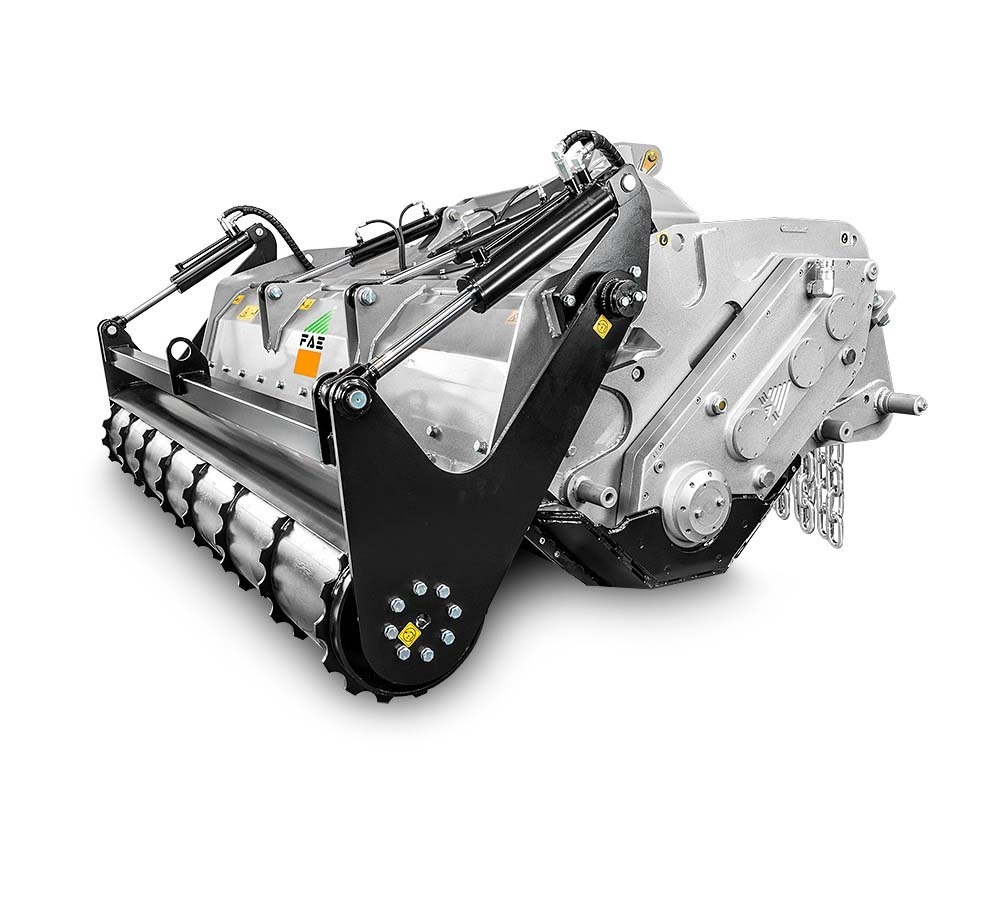

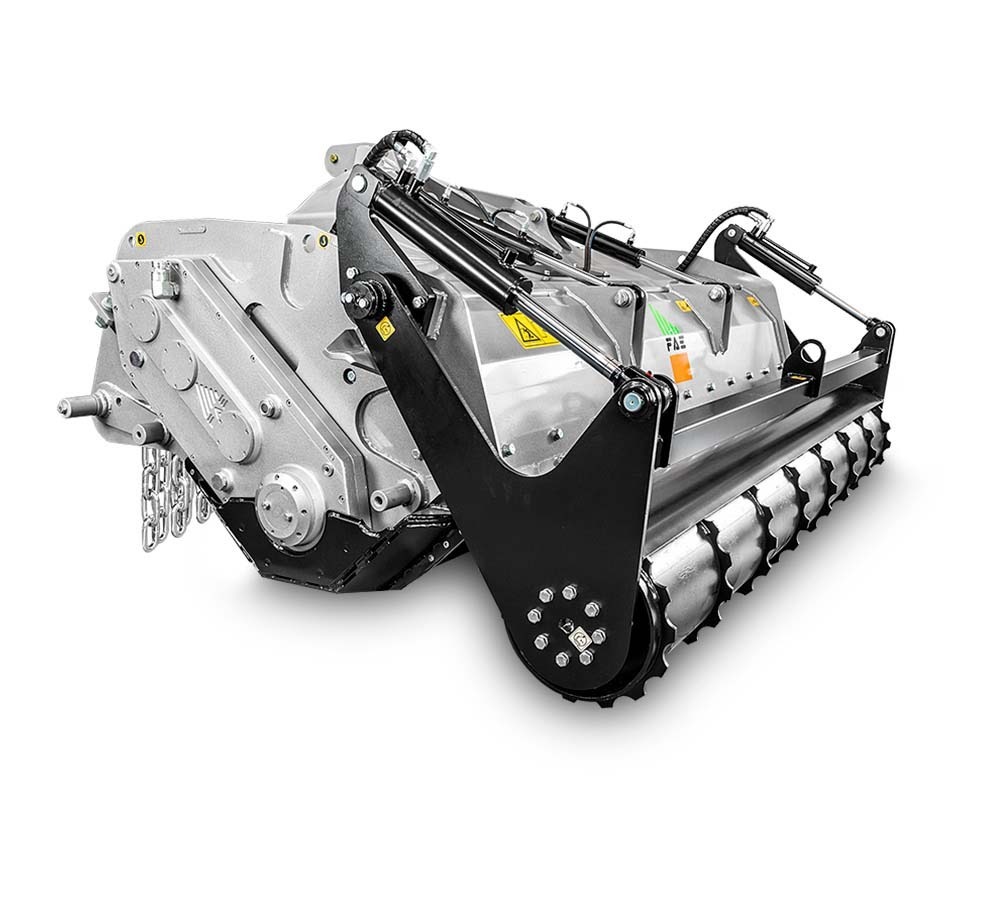

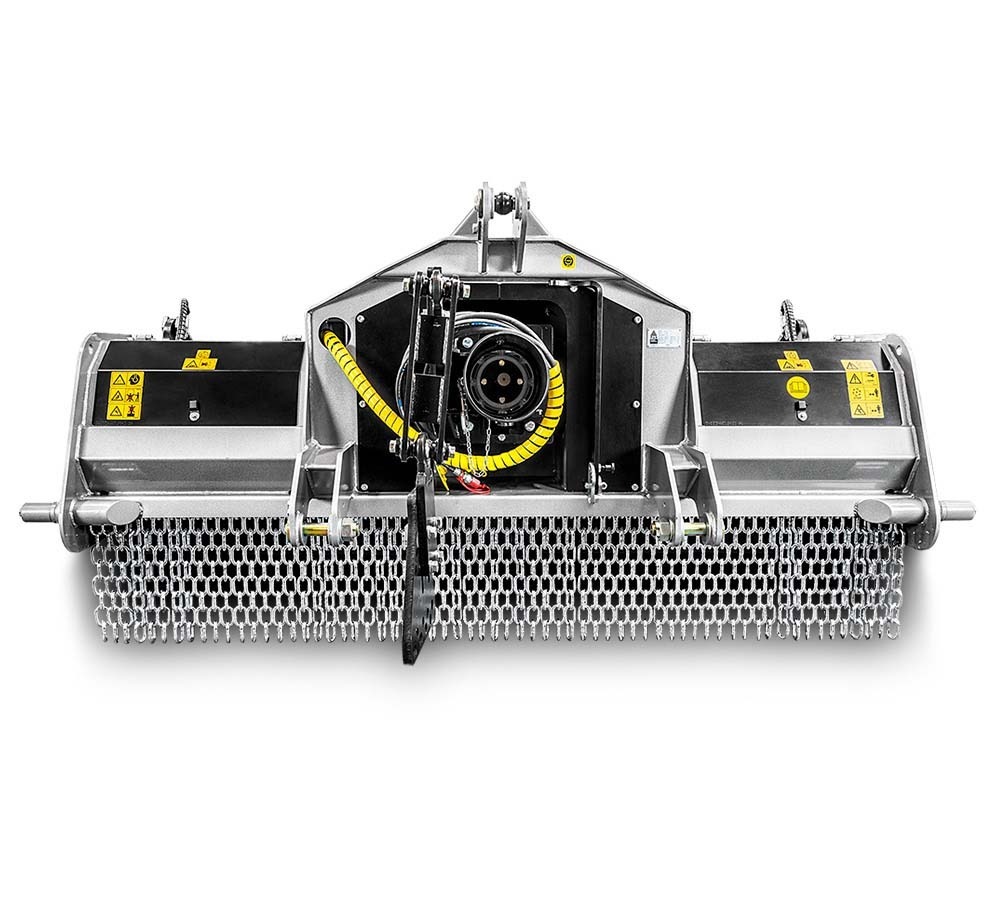

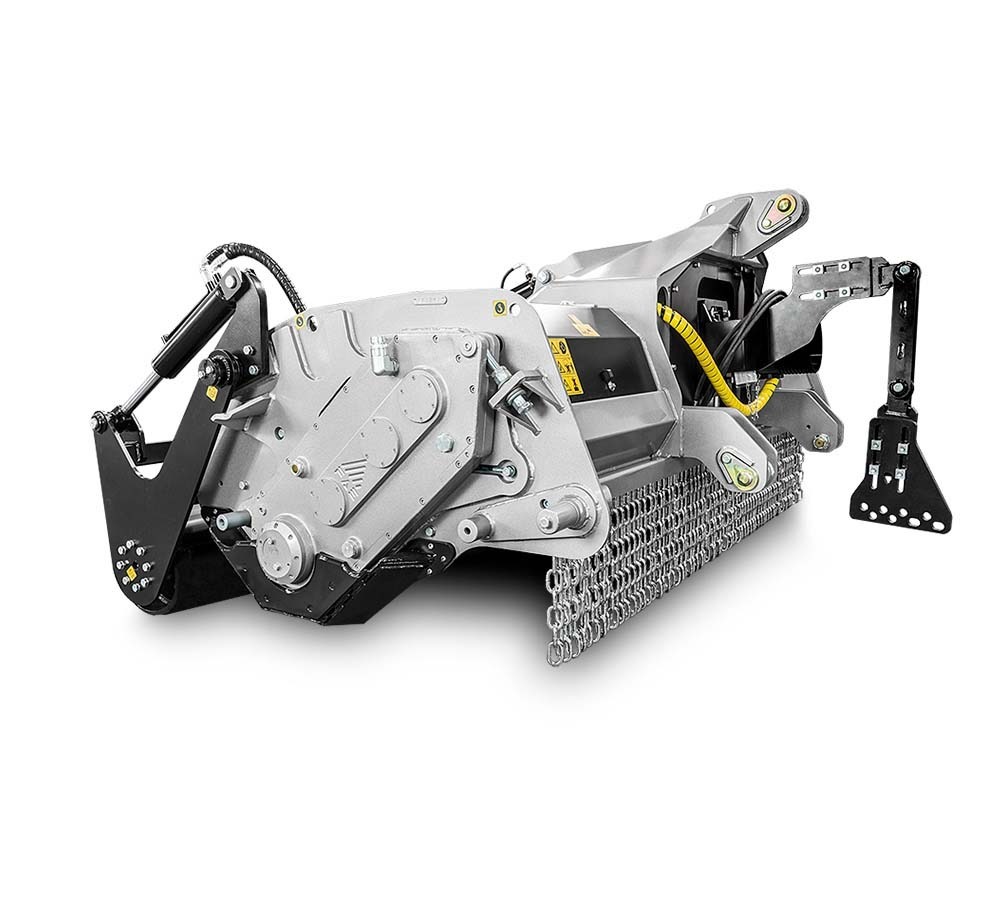

Forestry Tiller SSM - SSM/HP

Forestry tiller for tractors between 150 and 300 HP with a max grinding diameter of 50 cm/16".
This Heavy Duty tiller is designed and built to be used with medium to high power tractors.
The "HP version" is equipped with a reinforced transmission and can grind stumps up to 50 cm/20"
in diameter to a depths of 40 cm/16", for excellent depth soil reclamation.
The soil is thus ready for planting without further processing.
Multiple tooth options available for different environments.

The standard equipment includes:

• friction clutch on side PTO
• PTO shaft with cam clutch
• gearbox with freewheel
• transmission with side gearbox
• hydraulic hood
• welded steel counter-blades
• flat pressed welded steel protection counter-blades
• enclosed machine body
• centralized greasing hub
• hydraulic top link
• Z style self ranging system of the PTO drive shaft/gearbox
• inside lateral protections
• bigger transmission for tractors up to 360-400 HP (SSM/HP 200, 225 and 250)
• protection chains

Available on demand: W style self aligning device between PTO drive shaft/gearbox, dozing blade (not compatible with roller), hydraulic controlled roller (not compatible with dozing blade), multiple tooth options.
