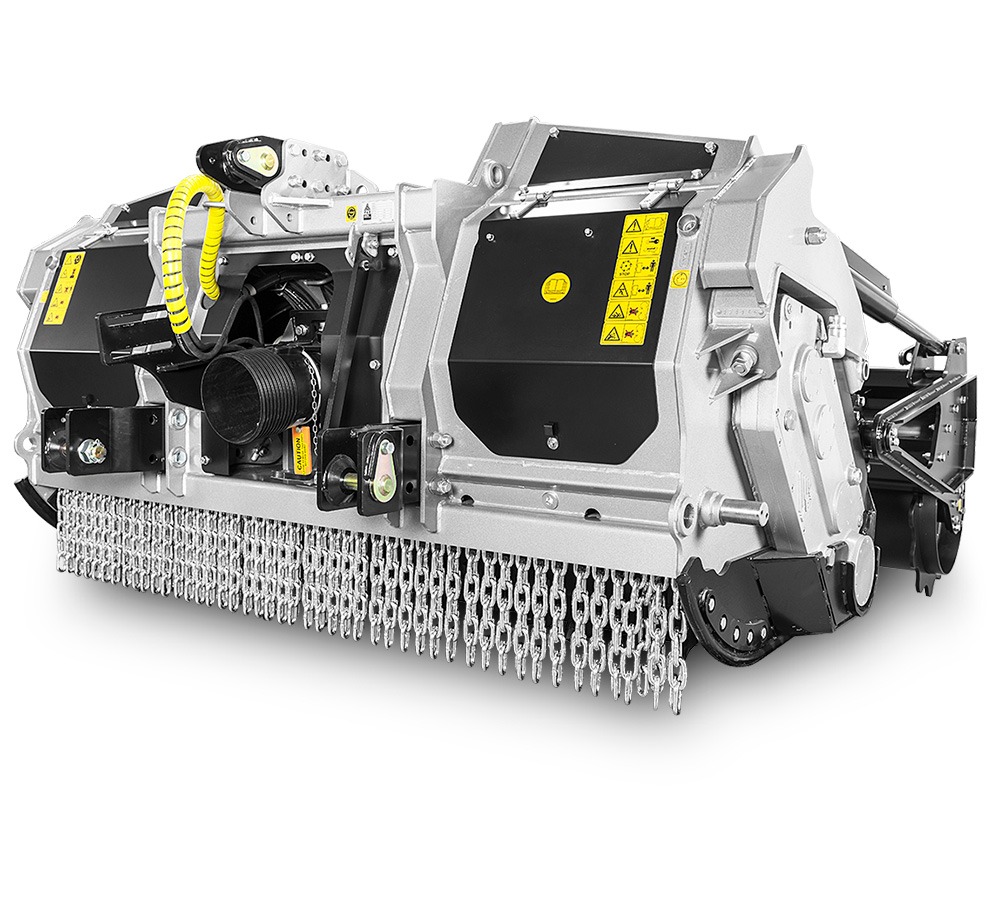

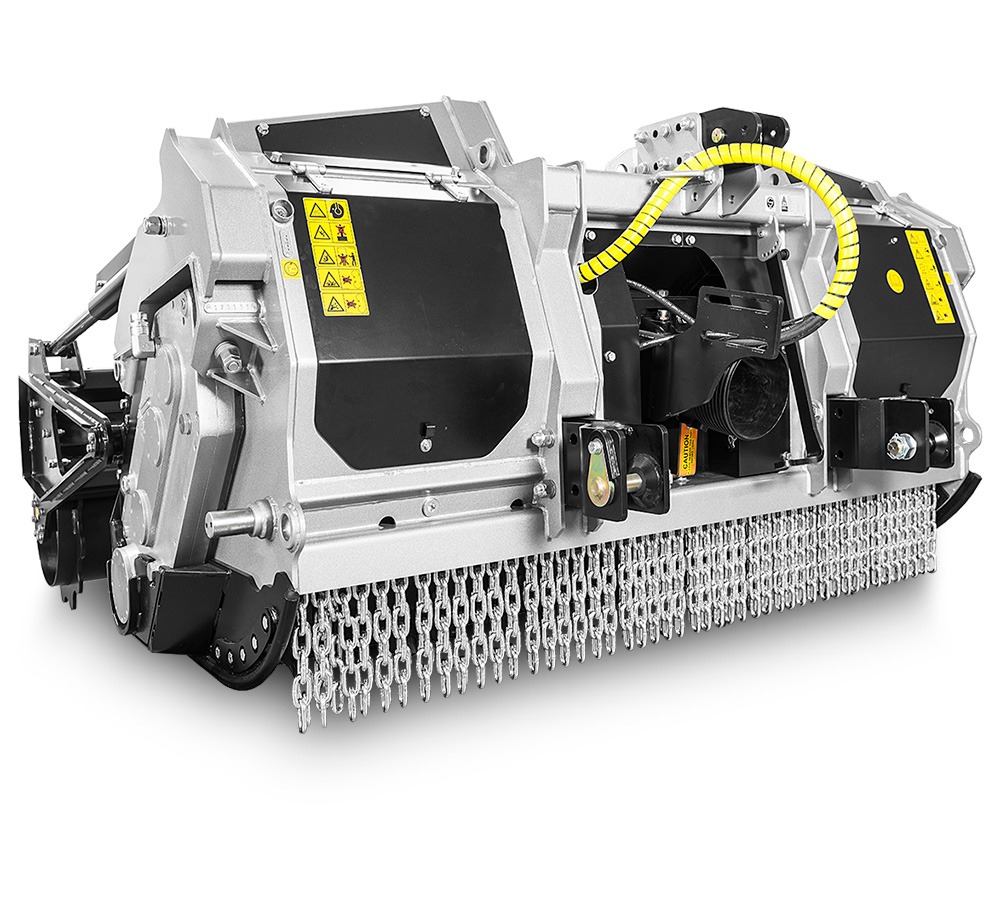

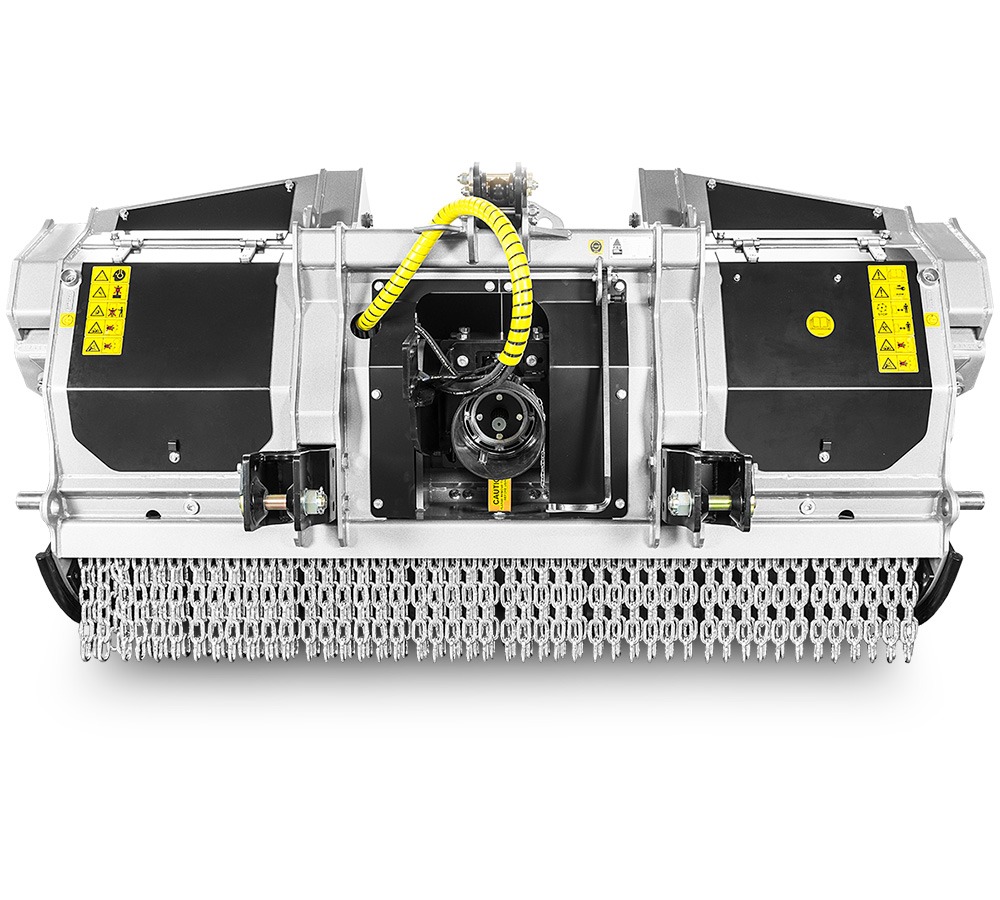

Stone Crushers/Forestry Tiller SFM

Forestry mulcher, tiller and stone crusher for tractors between 160 and 300 HP, with mulching diameter of 20cm/8" max stones, 35cm/14" max trees, 45cm/18" max stump and maximum working depth of 30cm/12".

The NEW SFM is the answer to a very demanding market and tough applications. This unit combines the functionality and efficiency of a forestry mulcher, forestry tiller and rock crusher. The SFM is equipped with interchangeable bolt-on counter blades, FCP inserts (FAE clade plate) and grill making this machine unique in its category. These options along with FAE’s new smoother, more aggressive design differentiate FAE from the rest.

The standard equipment includes:

• Friction clutch on side PTO
• PTO shaft with cam clutch
• Gearbox with freewheel
• Transmission with side gearbox
• Side gearbox with oil cooling system
• Hydraulic rear hood
• Forged and hardened interchangeable counter-blades
• Adjustable hardox® counter-blade
• Inner anti wear clad plates FCP
• Interchangeable inner antiwear plates in Hardox®
• Adjustable extended 3 point linkage
• Anti dust machine body
• Hydraulic top link
• Z style self ranging system of the PTO drive shaft/gearbox
• Hydraulic hoses integrated in the frame
• Cylinder protection
• Inside lateral protection
• Protection chains

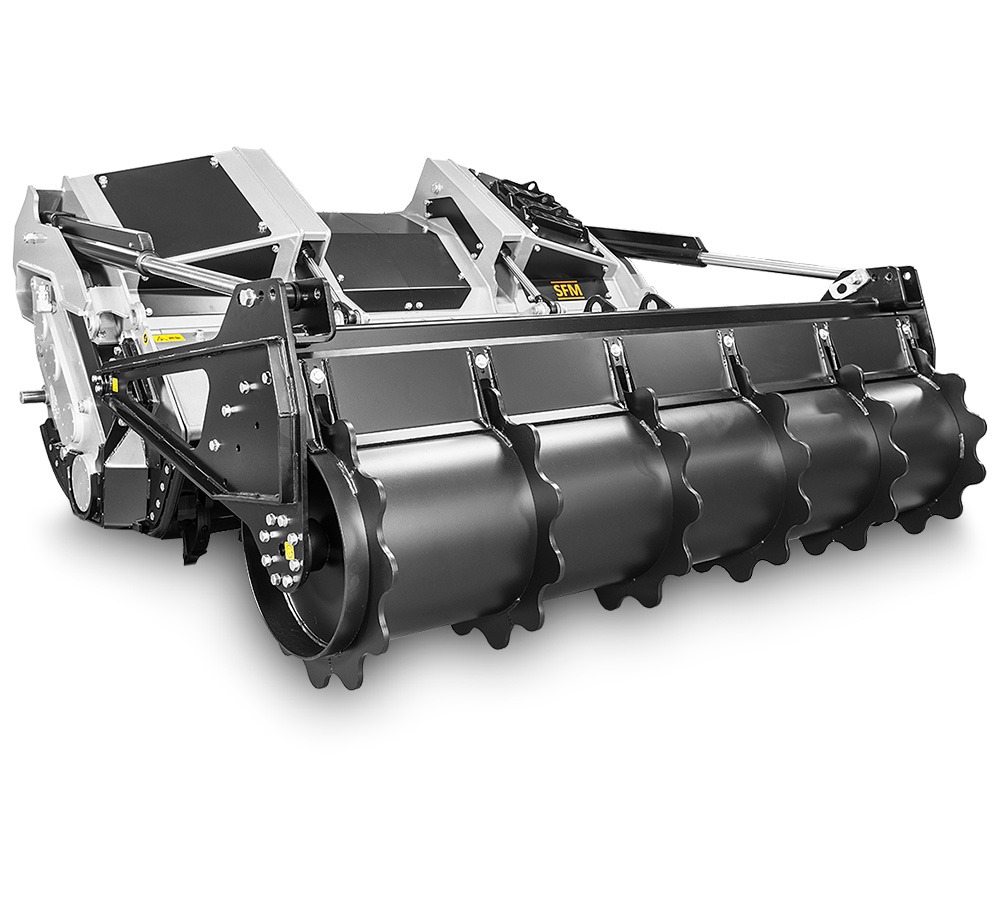

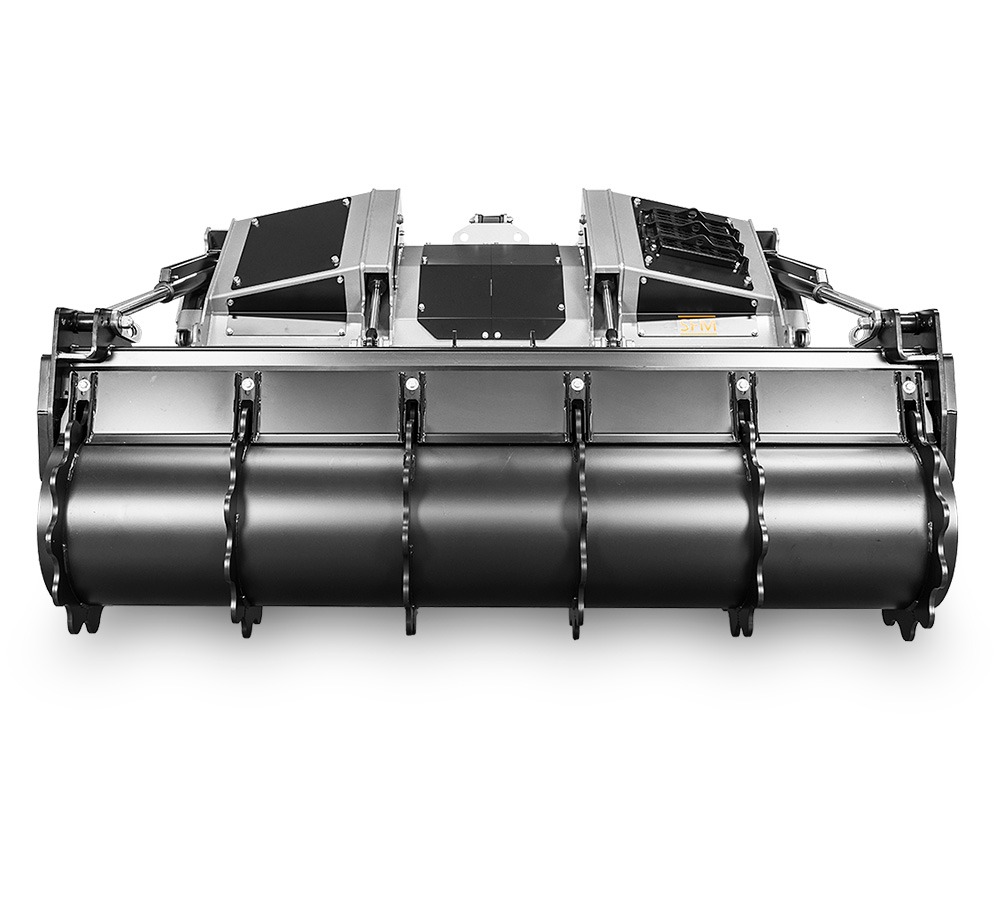

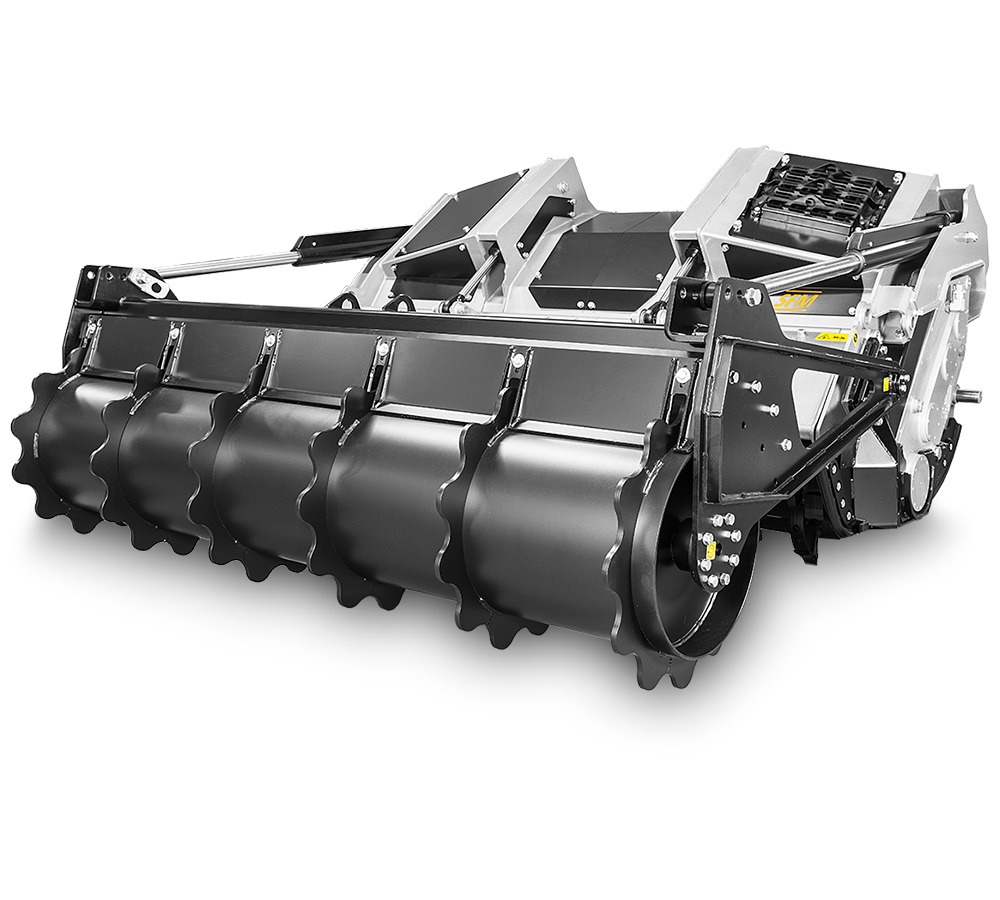

Available on demand: hydraulically adjustable skids, bolted grid on rear hood, W style self aligning device between PTO drive shaft/gearbox, hydraulic push frame, hydraulic support roller two different style, D.36 cm or D. 51 cm, bolt-on chains protection plates, high speed transmission for SFM, rear dozing flap for SFM.
