Stone Crushers/Forestry Tillers SFH - SFH/HP

ADDITIONAL DETAILS:

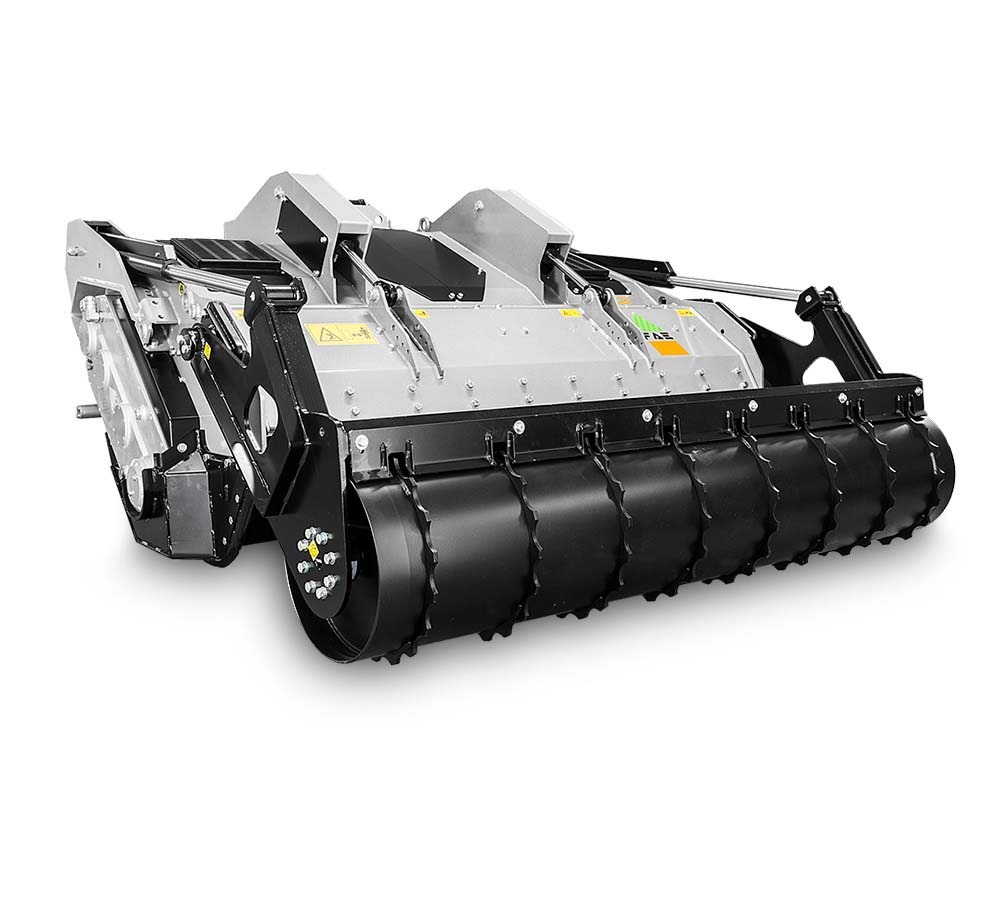

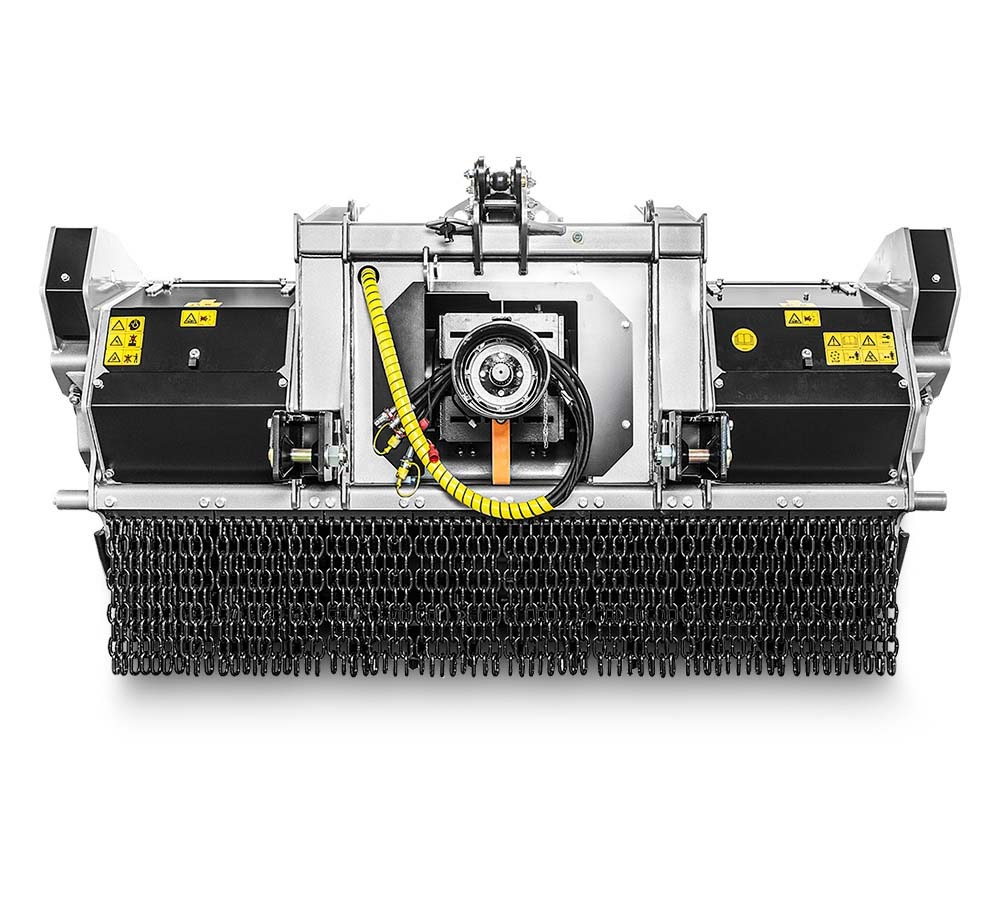

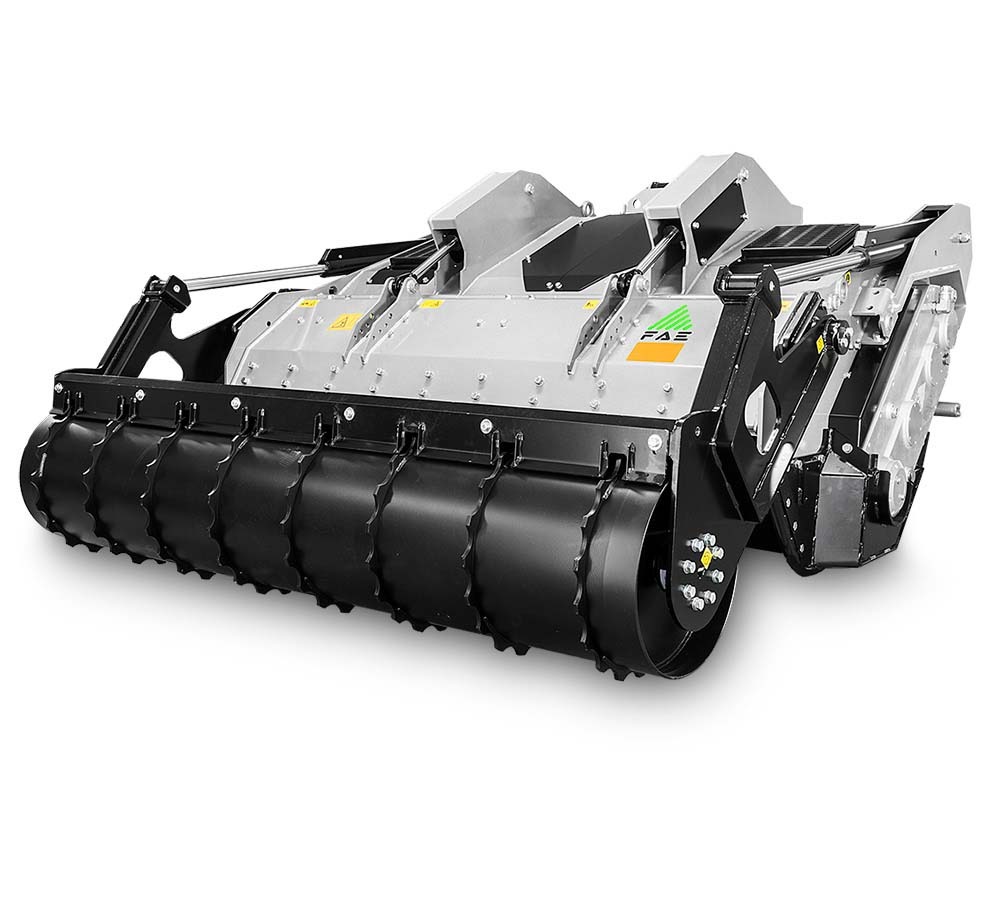

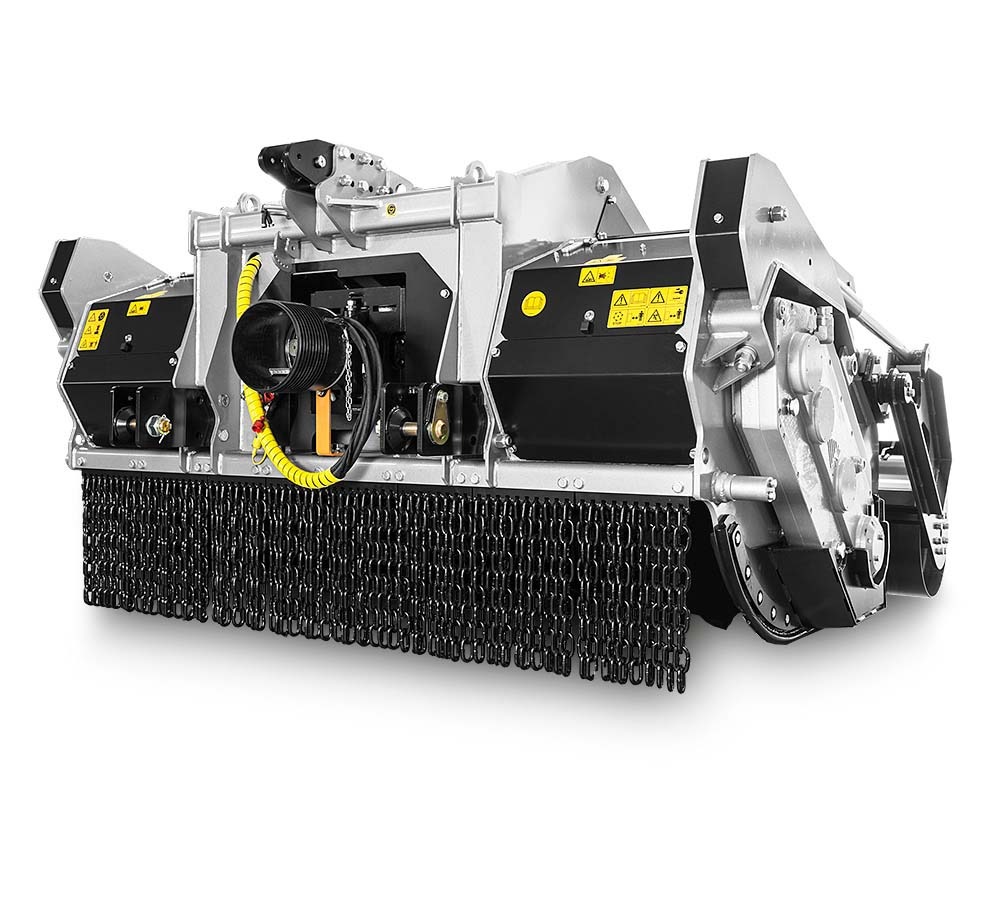

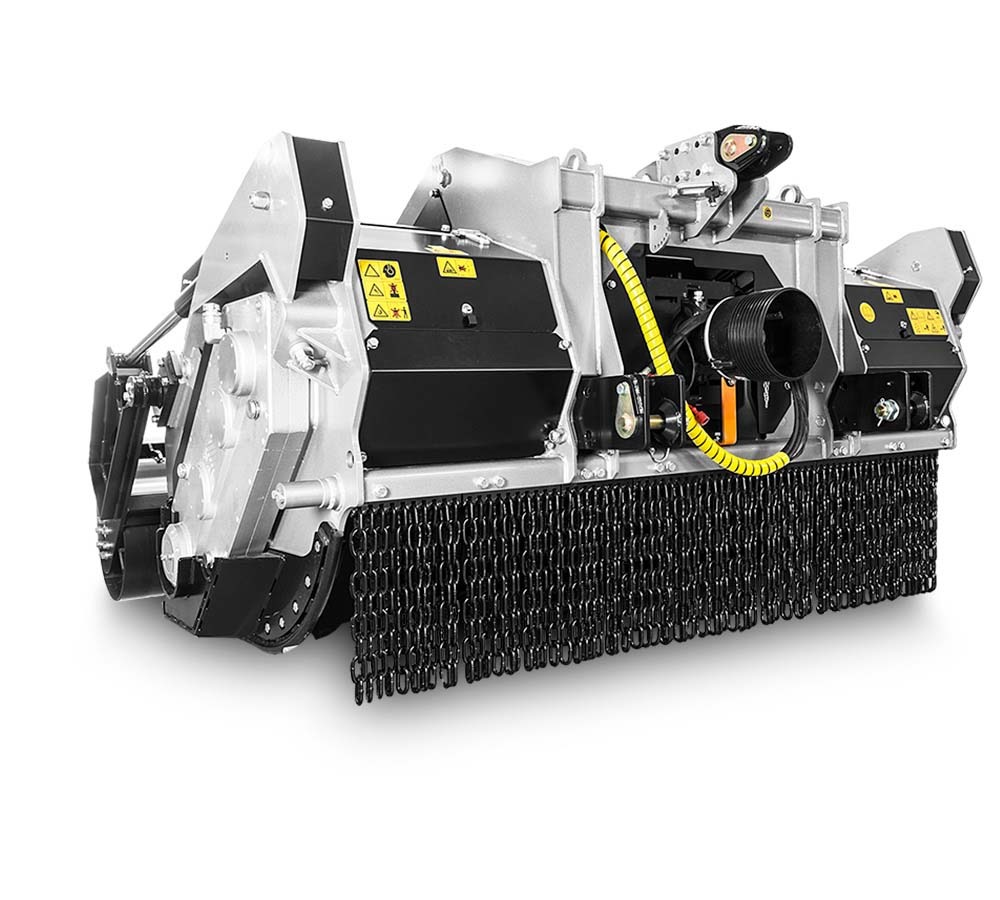

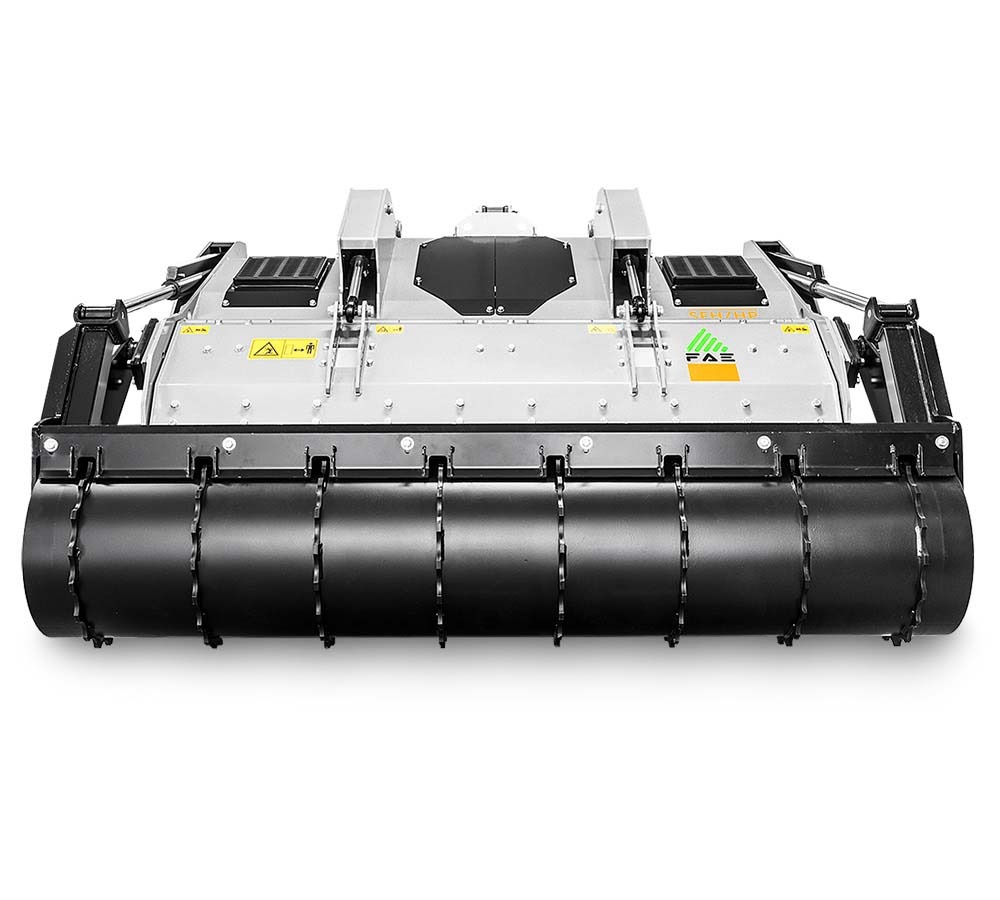

STONE CRUSHER, FORESTRY TILLER AND MULCHER FOR TRACTORS WITH FIXED TEETH ROTOR.

The SFH is a versatile, heavy-duty attachment for use with tractors up to 500 horsepower (HP version). It can grind trees up to 45 cm max diameter, stones up to 30 cm max, and run at a depth of 40 cm underground. The transmission with side gearboxes converts engine power into speed and torque. Multiple tooth options combined with an industry leading rotor design, make the SFH one of a kind. All our options make the SFH very versatile and the best solution for multiple applications.

The standard equipment includes:

• PTO shaft
• friction clutch on side PTO
• gearbox with freewheel
• cooling system (SFH/HP) for gearbox
• transmission with side gearbox
• cooling system (SFH/HP) for side gearbox
• hydraulic hood
• forged and hardened interchangeable counter-blades
• third row of interchangeable forged and hardened counter-blades
• adjustable Hardox® counter-blade
• inner anti-wear clad plates FCP
• adjustable extended 3 point linkage
• enclosed machine body
• centralized greasing hub
• hydraulic top link
• Z style self ranging system of the PTO drive shaft/gearbox
• hydraulic hoses integrated in the frame
• cylinder protection
• inside lateral protections
• protection chains

Available on demand: hydraulically adjustable skids, bolted grid on rear hood, W style self aligning device between PTO drive shaft/gearbox, hydraulic controlled roller, high speed transmission for SFH.
