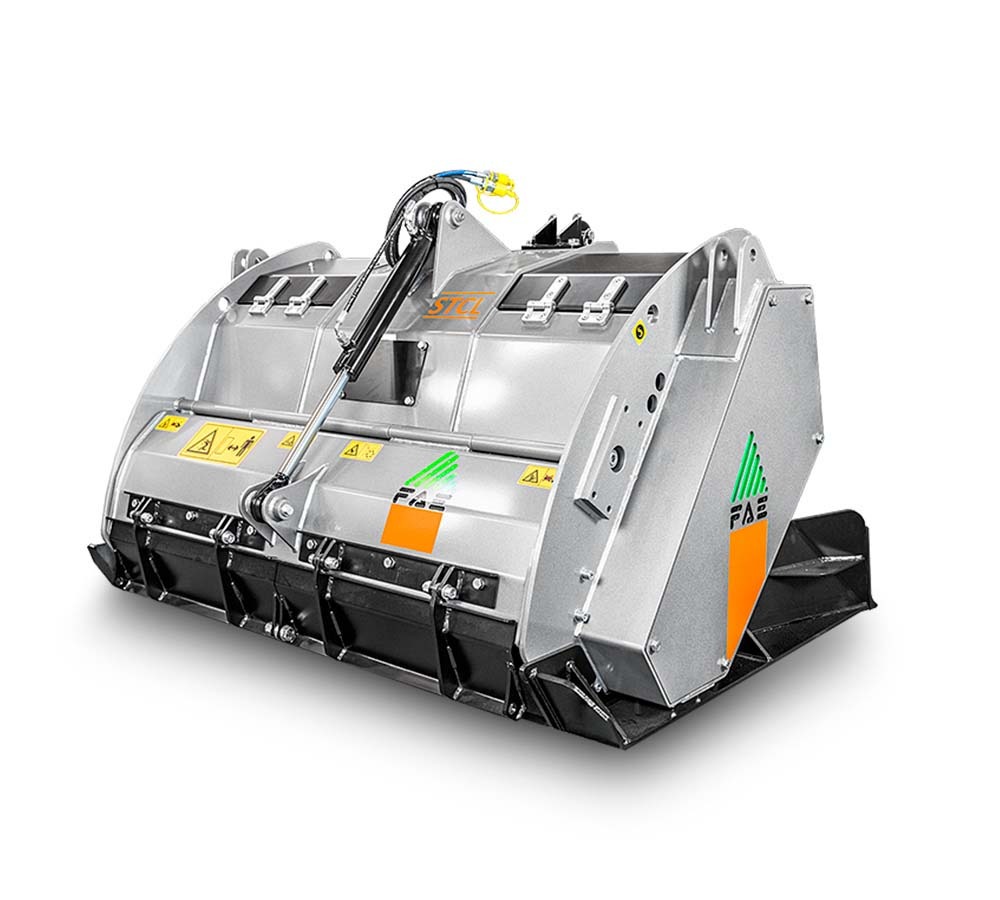

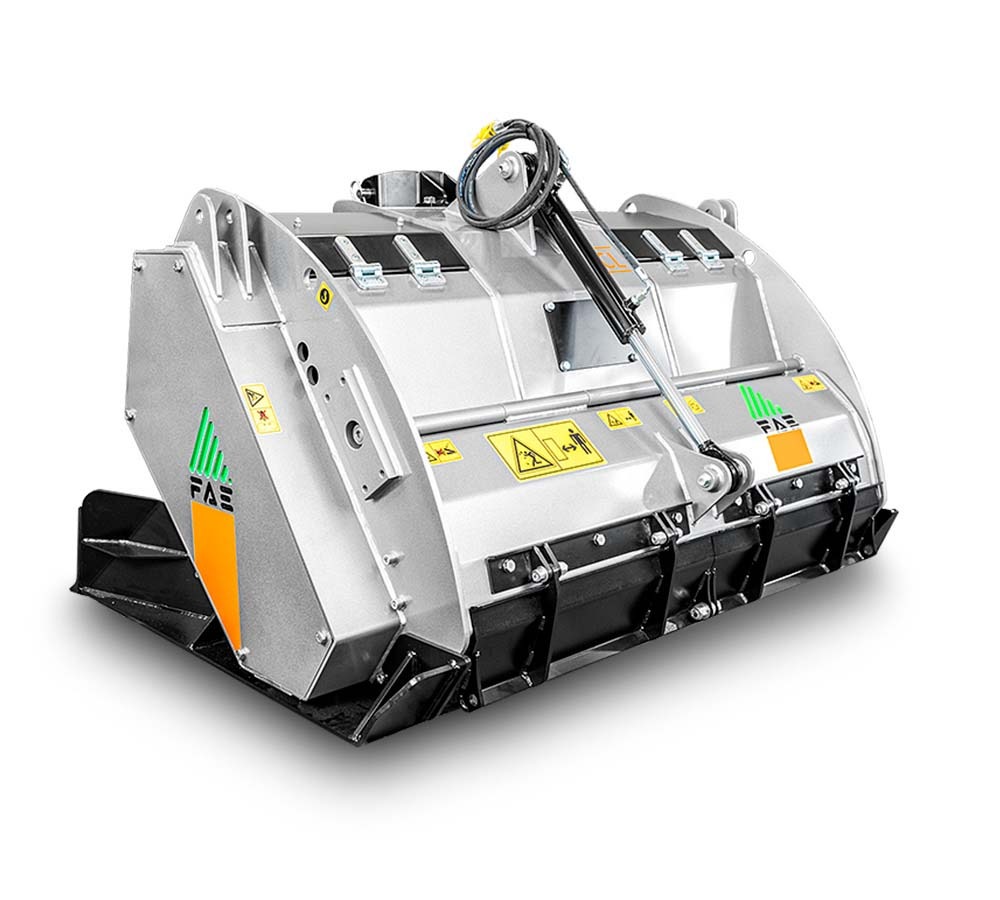

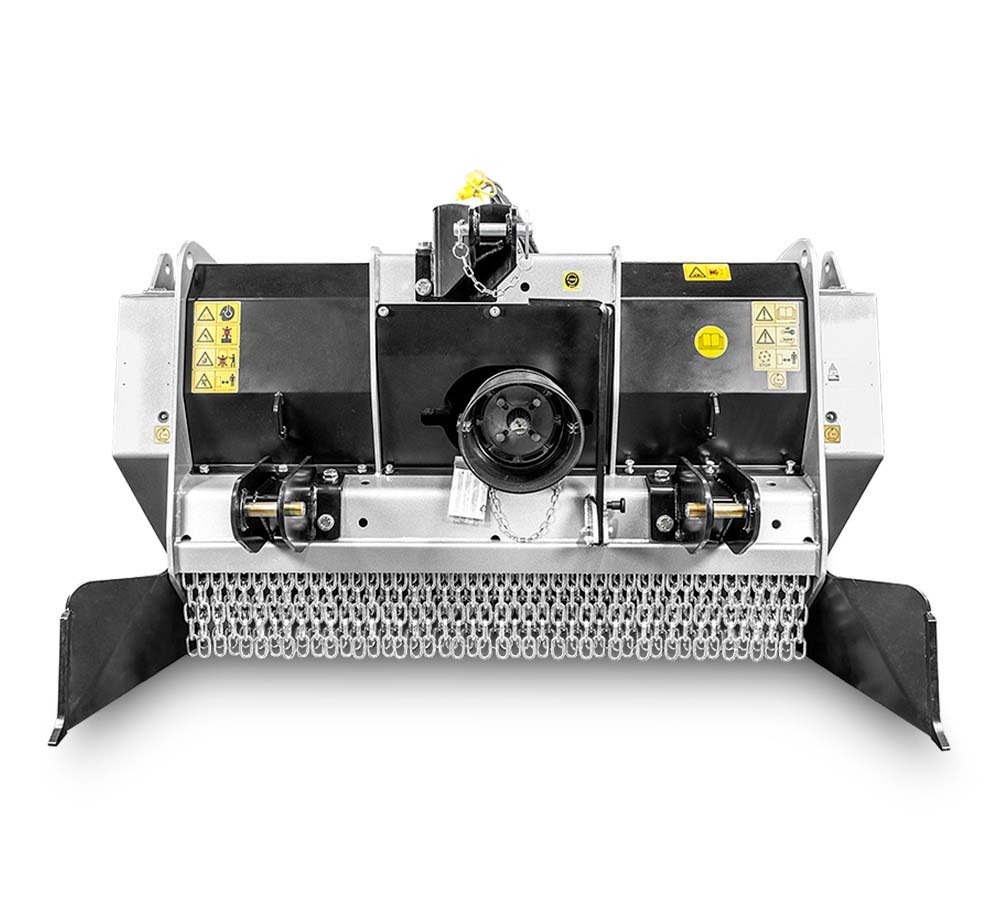

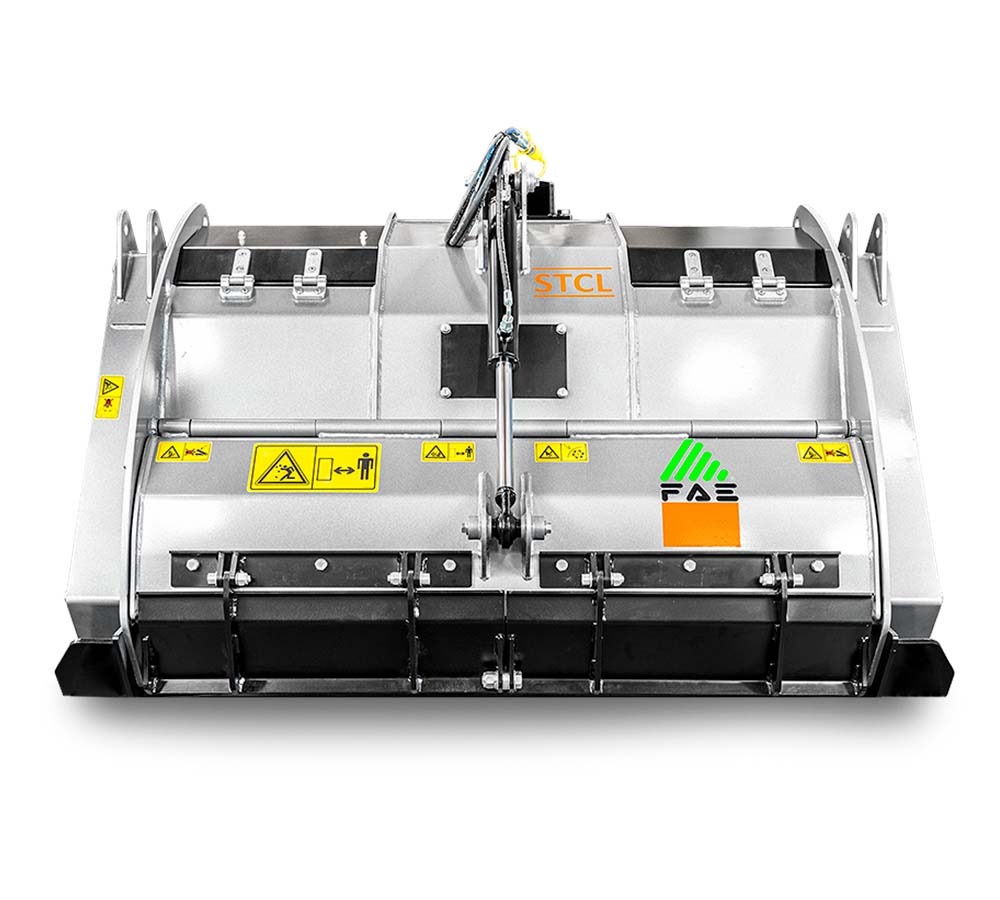

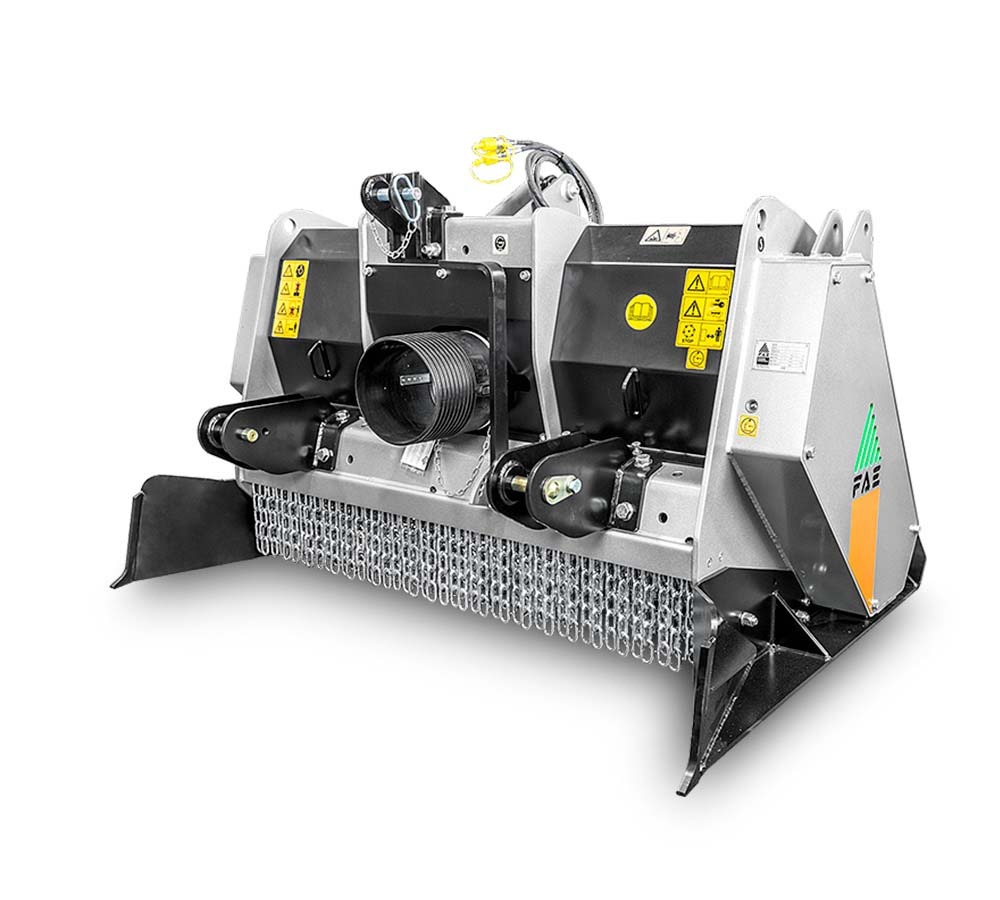

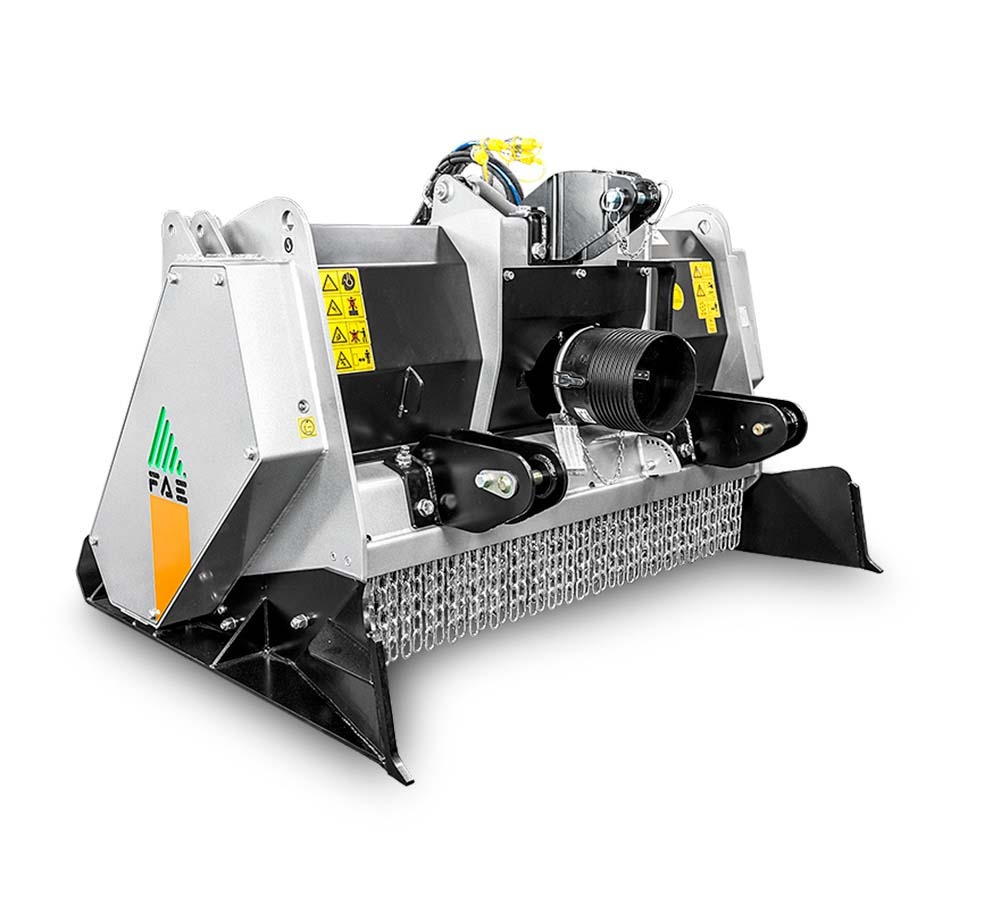

Stone Crushers STCL



Stone crushers with a max working depth of 15 cm/6'' for tractors between 80 and 150 HP.

The STCL is the entry-level model in the rock crusher line. Its small dimensions and lower weight make it highly versatile. It is designed and built for agricultural soil reclamation in loose and superficial rock. Its small size makes it ideal for use in vineyards and orchards. The internal counter knives are adjustable and determine the size of the final product. The rear door is designed to doze the material as they leave the crushing chamber.
A differential gearbox system is available to align the machine with the tractor PTO when working on uneven terrain.

The standard equipment includes:

  • PTO shaft with cam clutch
  • transmission with belts in Poly-Chain® Carbon
  • gearbox with freewheel
  • hydraulic hood
  • flat pressed welded steel counter-blades
  • adjustable Hardox® counter-blade
  • penetration skids
  • enclosed machine body
  • inside lateral protection
  • dual row protection chains

Available on demand: possibility to choose Transmission 540 / 1000 rpm, the choice between 540 and 1000 rpm transmission (STC 125), adjustable extended 3 point linkage (STCL/ST), hydraulic top link, dozing blade, grader blade.
